China Diesel Generator, Power Generator, Deutz Generator Set

Home Deutz Generator Set Deutz Generator Set (25~150kVA)

Deutz Generator Set

The Deutz generator set (25~150kVA), powered by Deutz (Sino-Germany) series diesel engine, is equipped with famous brushless excitation alternators of Marathon and Stamford, and intelligent control panels.

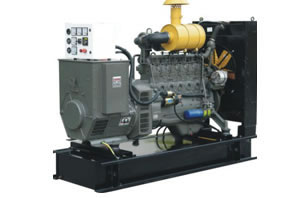

Deutz Generator Set (25~150kVA)
With automatic protective device, Deutz generator set can automatically control and regulate the water temperature, oil temperature, oil pressure, and speed. It has many advantages such as automatic speed regulation, automatic voltage regulation, good dynamic performance, stable fluctuation of voltage, high efficiency, high reliability, long service life, and more. These generator sets can be combined as a power station group with automatic start system in accordance with customer's requirements.
DEUTZ was founded 1864 in Cologne, Germany. Now DEUTZ is the world's oldest engine manufacturer. DEUTZ, with annual sales of about Euro1,200 million, is one of the leading independent suppliers of diesel and gas engines in the world.
Bottom

Detailed Information of Deutz Generator Set (25~150kVA)

Power output range 25-150kVA
Engine model D226B-3D, TD226B-3D, TD226B-4D, TD226B-6D, TBD226B-6D, TDB226B-6D5
Alternator a) Marathon (Sino-USA) b) Stamford (Sino-UK)
Rated voltage 100-400V
Rated frequency 50/60Hz
Mode of connection single or 3 phases
Rated power factor 0.8 (lagging)
Wave distortion less than 10%
Power supply voltage 24V
Volt fluctuating <0.5%
Volt / frequency fluctuating ≈0.5

Features of Deutz Generator Set (25~150kVA)
1) Small volume, light weight, low noise, low fuel consumption
2) Water-cooling with water tank and fan
3) Start by key / auto start
4) Monitoring meters and control switches
5) Protection provided for short-circuiting over-current, over-speed, high water temperature and low oil pressure
6) Soundproof / weatherproof canopy is optional
7) Supply scope of standard parts: industrial type silencer, exhaust pipe, flexible exhaust bellows, vibration-damping rubber, lead-acid battery, connecting cables of battery, users' manual and technical papers

Specifications of Deutz Generator Set
1) Engine
a) Multi-cylinder in-line or VEE engine, 4-stroke, direct injection
b) Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
c) Mechanical or electronic governor
d) Fuel injection pump
e) Electric motor starting system
f) Forge steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
g) Low discharge, and low fuel consumption
h) Installing conveniently, and maintaining easily
2) Alternator (Marathon / Stamford)
a) Brushless, self-excited, 4-pole, single bearing
b) AVR self-regulated
c) IP21 protection grade, class H insulation
d) Voltage regulation rate ±1%
e) Radio interference restraining accords with the stipulations of VDE0875-N and GB/T2820
f) Moisture-proof, sand-proof, dust-proof, salt-proof and vibration-proof
g) Small volume
h) Light weight

[ Details of Deutz Gensets ]
