Cummins Marine Generator

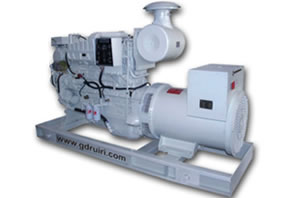

Description of Cummins Marine Generator
1. 50-1000kVA marine genset adopts the Cummins(Sino-USA) 4/6B, 6CT, N/KT series marine diesel engine (CCS Certificate);
2. It is equipped with some famous brushless excitation alternators (Marathon, Stamford, etc.);
3. With auto protective device, the diesel generator can control and protect the water temperature, oil temperature, oil pressure, and the speed.
4. Other Marine Classification Society Approval can be supplied upon request, such as BV(France), ABS(USA), etc.

Bottom

Advantages of Cummins Marine Generator
1. Automatic speed regulation;
2. Automatic voltage regulation;
3. Better dynamic performance;
4. Stable fluctuation form of voltage;
5. Improved efficiency and reliability, long life time, etc.

Main Specifications of Cummins Marine Generator

50/60Hz, 230V/400V, 50kVA - 1000kVA
Generator Set Model	Engine Model (Cummins)	Alternator Model (Marathon)	Frequency (Hz)	Prime Power		Standby Power
Generator Set Model	Engine Model (Cummins)	Alternator Model (Marathon)	Frequency (Hz)	kW	kVA	kW	kVA
RCM40M	4BTA3.9-GM47	MP-H-40-4	50	40	50	44	55
RCM75M	6BT5.9-GM80	MP-H-75-4	50	75	94	82	103
RCM100M	6CT8.3-GM115	MP-H-100-4	50	100	125	110	138
RCM140M	6CTA8.3-GM155	MP-H-150-4	50	140	175	154	193
RCM200M	NTA855-G1M	MP-H-200-4	50	200	250	220	275
RCM250M	NTA855-G2M	MP-H-250-4	50	250	313	275	344
RCM280M	NTA855-G4M	MP-H-280-4	50	280	350	308	385
RCM300M	KTA19-G2M	MP-H-300-4	50	300	375	330	413
RCM350M	KTA19-G3M	MP-H-350-4	50	350	438	385	481
RCM400M	KTA19-G4M	MX-H-400-4	50	400	500	440	550
RCM500M	KT38-GM	MX-H-500-4	50	500	625	550	688
RCM600M	KTA38-G2M	MX-H-630-4	50	600	750	660	825
RCM800M	KTA38-G5M	MX-H-800-4	50	800	1000	880	1100
