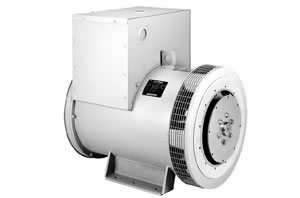

Alternator Marathon Alternator (11~625kVA)
Description of Marathon Alternator
1. MAGNAPLUS® generators provide powerful performance, dependable power generation and convenient installation.
2. The SE350 voltage regulator is ruggedly constructed with state-of-the-art technology;
3. MAGNAPLUS® designs offer an optional, field adaptable, permanent magnet generator which can be combined with our PM300 or DVR2000 voltage regulators.
4. This flexibility in configurations makes it applicable to the most demanding installations including loads that produce harmonic distortion as well as those requiring fault current support.
5. UL recognized, class H insulation system, and long life bearings.
6. MAGNAPLUS® designs are the desired general purpose generators for standby as well as prime power markets such as:
Agricultural
Marine
Construction
Commercial buildings
Rental markets
Features of Marathon Alternator
1. Over 20 stock models, all 12 lead reconnectable, offering voltage and phase flexibility. All are capable of being modified to a variety of standard and optional conduit box arrangements to meet customer requirements.
2. EASY MOUNT SAE ADAPTERS are provided with every electric generator to simplify coupling to the prime mover, without influencing generator foot mounting dimensions.
3. SE350 Regulator, provides 1% voltage regulation and provides such commercial features as under speed protection and stability adjustment.
4. Optimal windings with brushless exciter. The 2/3-pitch design is utilized to minimize harmonic distortion.
5. A Class H insulation system, recognized under UL1446, is suitable for submission to UL2200 application approval.
Main Specifications of Marathon Alternator
