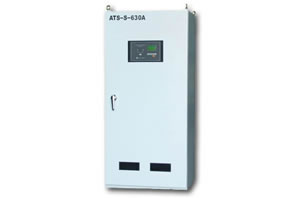

Description of Automatic Transfer Switch Panel (ATS) for Power Generator:
1. ATS-S series automatic loading transfer panel employs intelligent automatic switch controller.
2. It is capable of transferring the switch from civil electricity to the 3-phase, 4-pole industrial electricity power automatically.
- When failure of the main power supply occurs, the voltage will drop below 80% of normal. Then ATS will automatically start the emergency genset after preset time of 0-10 seconds (adjustable). Once genset reaches the rated speed, ATS will transfer the switch to emergency genset automatically.
- At rated speed, the ATS will transfer load to emergency power with available size range from 40A to 4000A.
