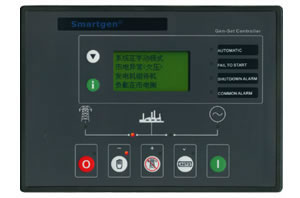

Digital Automatic Control Panel for Power Generator

4. The micro-processing technique the controller uses enables it to accomplish precision measure, constant value adjustment, timing and threshold setting of multi-parameters.
5. It is widely applied to all types of generator automatic control system for compact structure, advanced circuits, simple connections and high reliability.

Performance and Characteristics of Digital Automatic Control Panel:
1. HGM6300 controller has two types:
HGM6310: ASM (Automatic Start Module)
HGM6320: AMF (Automatic Mains Failure Module)
2. Using microprocessor as a core, graphics LCD with big screen and backlight, display between Chinese and English, key touch for operation.
3. Precision measure and display of
mains voltage
mains frequency (Hz)
mains active power (kW)
mains apparent power (kVA)
mains power factor
generator voltage
generator current
generator frequency (Hz)
generator active power (kW)
generator apparent power (kVA)
generator power factor
generator hours count
generator cumulate electric energy (kWh)
generator temperature
generator pressure
generator fuel level
start battery voltage
4. Configurable single phase 2 wires or three phase 3 wires or three phase 4 wires AC system input;
5. Control protection: automatic start/stop, load transfer and alarming of generator;
6. Parameters setting: allow user to modify setting and store them inside internal FLASH memory, the parameters will not be lost even with power down.
7. Three channel analog inputs, may joint with Resistive-type temperature/ pressure/ fuel level sensors, Several temperature and pressure sensors can be used directly (ie. VDO, DATCON, CUMMINS), also may select "user defined" sensor via entering 16 point curves;
8. Functions including RTC (real time clock) and hours count;
9. Display of generator cumulated electric energy;
10. Security password-protected programming levels.
11. Several crank success conditions are optional;
12. Built-in speed/frequency detecting units is capable of accurately judging the states such as crank success and over speed;
13. 99 historical records can be stored circularly and inquiring of the records can be made on site;
14. Wide power supply range for different starting battery voltage environments;
15. All parameters adopt digital modulation, abandoning analog modulation using conventional electronic potentiometer, increasing reliability and stability;
16. Built-in watch dog can never be dead halt, bringing smooth program execution;
17. Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation.

Specifications of Digital Automatic Control Panel:
