XinChai Series Diesel Engine

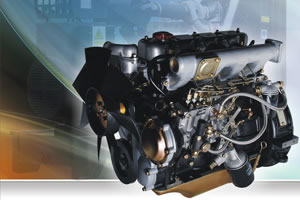

XinChai Series Diesel Engine, N485
N485 Diesel Engine for Generating Sets

The NC485BD engine, a kind of XinChai series diesel engine, is specially designed for generating sets based on the working mode and operation conditions of generating sets. It is ideal power for the 10-15KW generating sets.

XinChai Series Diesel Engine, N485

Main Features of XinChai Series Diesel Engine, N485
1. Direct injection and excellent start performance
2. Low fuel consumption, low noise, stable and reliable performance
3. Compact structure, standard SAE coupling, easy installation, sub-unit painting, elegant design
4. Necessary technical support from our professional team
5. High grade after-sales service and sufficient supply of spare parts for our customers

Specifications of XinChai Series Diesel Engine, N485

Model NC485BD
Cylinder number-cylinder bore×stroke (mm) 4-85×100
Type Direct injection, water cooled, four-stroke
Displacement(L) 2.27
Compression ratio 18:1
Rated output/ Rated speed(kw/r/min) 17/1500 20/1800
Maximum specific fuel consumption at full load(g/kw﹒h) ≤240
Minimum steady idling speed(r/min) ≤950
Maximum smoke at full load ≤2.0
Exhaust temperature(℃) ≤550
Net weight ≤220
Machine oil consumption(g/kW﹒h) ≤1.63

A major XinChai series diesel engine supplier in China, Guangdong RISE Power Equipment Inc. has received the ISO9001:2000 certification due to its operation in rigid compliance with international standards. In addition to the XinChai series diesel engine, we also provide Perkins series diesel engine, SDEC diesel engine, SC (CAT) series diesel engine, and a range of generator sets, such as Lister-Petter generator set, VOLVO generator set, to name a few. With high quality and competitive prices, our products are highly praised by customers throughout the world. Located in Guangzhou, our company has access to convenient air, sea and land transportation, which can largely save shipping charges of our customers. For more information about our products, please go to our Product webpage or contact us directly. We at RISE Power are ready to serve you.
