Diesel Engine XinChai Series Diesel Engine

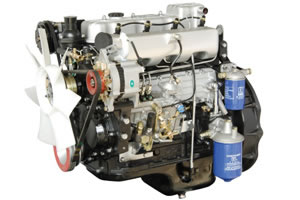

XinChai Series Diesel Engine, 4K39D-4K43D
Application of XinChai Series Diesel Engine, 4K39D-4K43D
The XinChai series diesel engine, 4K39D-4K43D is mainly used to provide power for 25~35KW generating sets.
Main Features of XinChai Series Diesel Engine, 4K39D-4K43D
1. Compact structure, small size, light weight and strong power;
2. Direct injection toroidal combustion chamber, low fuel consumption, low smoke concentration and fast and easy starting;
3. Smooth running and small vibration;
4. In compliance with national emission standard of GradeⅠ
Technical Parameters of XinChai Series Diesel Engine, 4K39D-4K43D
| Type | In-line, water-cooled, four-stroke direct-injection combustion chamber | ||
| Cylinder number-cylinder bore-stroke(mm) | 4-102-118 | 4-105-118 | 4-108-118 |
| Displacement (L) | 3.857 | 4.087 | 4.324 |
| Compression ratio | 17.5: 1 | ||
| Rated power/Rated speed (kW-r/min) | 33/1500 | 36/1500 | 40/1500 |
| Maximum torque/speed (N·m/r/min) | / | / | / |
| Maximum specific fuel consumption at full load(g/kw·h) | ≤ 238 | ||
| Engine idle speed (r/min) | 730 | ||
| Size (mm) | 942.5×582×772 | ||
As an experienced XinChai series diesel engine supplier in China, Guangdong RISE Power has gained ISO9001:2000 certification due to its operation in strict accordance with international standards. Our products primarily include MAN generator set, MTU generator set, SDEC generator set, and accessories like Stamford alternator, XinChai series diesel engine, and more. With reliable quality and competitive prices, our products are highly praised by our global customers. Located in Guangzhou, our company has access to convenient transportation, which can effectively bring down your shipping charges. For more information about our products, please go to our Product webpage or directly contact us. We at RISE Power look forward to hearing from you.
