Diesel Engine XinChai Series Diesel Engine

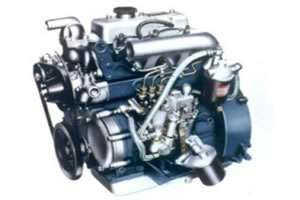

XinChai Series Diesel Engine, 3N17D
Application of XinChai Series Diesel Engine, 3N17D
The XinChai series diesel engine, 3N17D is generally adopted to provide power for 10-15kW generating sets.
Main Features of XinChai Series Diesel Engine, 3N17D
1. Compact structure, small size and light weight;
2. Strong power, low speed high torque;
3. Low fuel consumption, low acceleration smoke concentration, and good starting performance;
4. 3N17D generating set, in compliance with national off-road emission standard of GradeⅠ; the upgrading products, in accordance with the standard of EPA"Tier4".
Technical Parameters of XinChai Series Diesel Engine, 3N17D
| Type | In-line, water-cooled, four-stroke, direct-injection combustion chamber |
| Cylinder number-cylinder bore-stroke(mm) | 3-85-102 |
| Cylinder liner | Wet-type |
| Displacement (L) | 1.74 |
| Compression ratio | 18:1 |
| Rated output/ Rated speed(kw/r/min) | 13/1500 |
| Maximum specific fuel consumption at full load(g/kw·h) | ≤ 230 |
| Smoke (Bosch) | ≤ 3 |
| Emission level | National emission standards of GradeⅠ |
| Engine idle speed (r/min) | 650±10 |
| Size (mm) | 670×529×628 |
A leading XinChai series diesel engine supplier in China, Guangdong RISE Power Equipment Inc. has obtained the ISO certification due to its operation in strict compliance with international standards. In addition to the XinChai series diesel engine, we also provide customers with quality SDEC diesel engine, Leroy Somer alternator, and a range of generator sets, including Deutz generator set, Lister-Petter generator set, and DOOSAN DAEWOO generator set, to name a few. Featuring top quality, reliable performance, safety and long service life, our products are well received in the international markets. If you are interested in our diesel engines or generator sets, please feel free to contact us. We at RISE Power are ready to serve you.
