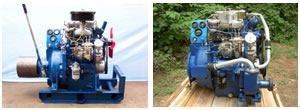

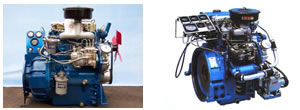

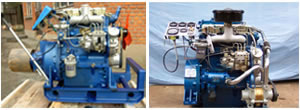

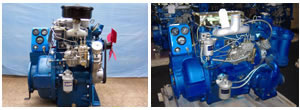

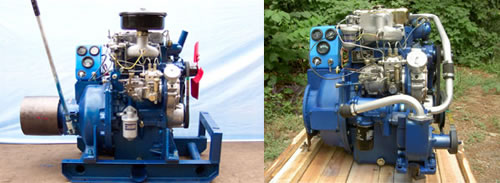

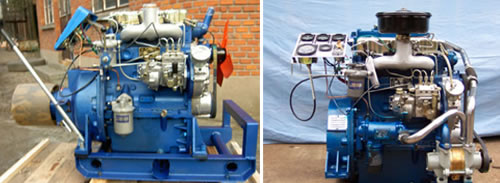

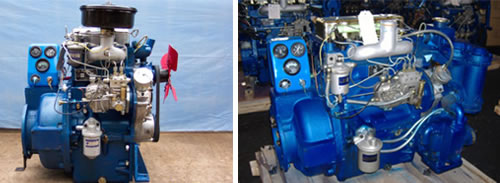

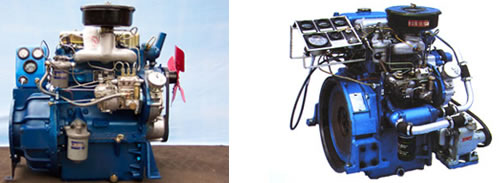

Model-AC Series Marine Engine

Description of Model-AC Series Marine Engine
1. This marine engine is good in quality and advanced in technology.
2. Our engine used for marine power has gained an increased market share in America, Poland, South Africa, and Pakistan etc.
3. Since 1999, the export shares of products have accounted for more than 50% of total sales amount.

Applications of Model-AC Series Marine Engine
They are the ideal power applied to four-wheel tractors, engineering machinery (concrete blender, steamroller), diminutive generating sets, marine engine sets, sewerages and watering machinery.

Main Technical Specification of Model-AC Series Marine Engine

Main Technical Specification

Model

4100 AC

495 AC-3

495 AC-2

495 AC -2A

495 ACB -1

495 ACB -2

395 AC

395 AC-1

395AC -2

395 ACB

395 ACB -1

295 AC

295 AC-1

295 ACB

295 ACB -1

Type

Four-Stroke, In-line, Spherical Combustor

Bore* Stroke (mm)

100*115

95*115

Cylinders

4

3

2

Gearbox Model

40A

40A

40A *(2) MA 125 MA 142

40A

40A *(2)

MA 125

MA 125

MA 125

MA 125

MA 125

MA 125

MA 125 MA 100

MA 125 MA 100

MA 125 MA 100

MA 125 MA 100

Gearbox Ratio

2.957:1

3.04:1 2.03:1

3.0 4:1

2. 03:1

3.0 4:1

2. 03:1

Direction (Face to output)

anticlockwise

clockwise

anticlockwise

clock wise

anticlo ckwise

clock wise

Continuous Power (kW)

36.8

31.6

30.16

23.5

22.5

15.8

15

Maximum Power (kW)

40.48

34.76

33.18

25.85

24.7

17.38

16.5

Speed of Continuous Power (r/min)

2000

676

658 or 985

2000

658

985

2000

658

985

Speed of Maximum Power (r/min)

2060

697

678 or 1015

2060

678

1015

2060

678

1015

Fuel Consum ption (g/kW*h)

<=258.4

<=272

<=265

<=276

<=272

<=280

Lubri cant Consum ption (g/kW*h)

<=2.0

<=2.5

<=2.04

<=2.1

<=2.04

<=2.1

Starting System

24V Electric Start

12V Electric Start

Cooling System

Heat Exchanger & Oil Radiator

Combinatory Heat Exchanger

Heat Excha nger & Oil Radi ator

Combin atory Heat Exch anger

Heat Exchanger & Oil Radiator

Weight(kg)

446

410

446

720

550

340

480

300

400

Dimen sion (mm)

1090* 778* 932

1090 *763* 932

1090* 778* 932

1361* 778* 971

1124* 763* 953

733* 763*857

1099* 763*857

609* 763* 857

945*7 63*857
