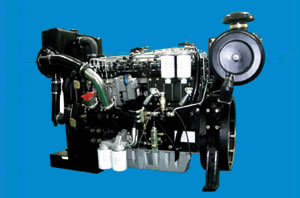

LovoL Marine Engine (40~110Kw)

Description of LovoL Marine Engine
1. It is a special power platform developed for auxiliary generator for vessel based on many years of experience and combines advanced design concept of engine;
2. Main types include 1004GM, 1004TGM, 1006TGM and 1006TWGM, power from 40-110kw;
3. It is widely used in the auxiliary diesel generator set for carrier, passenger ship, fishing ship and so on.

LovoL Marine Engine (40~110Kw)

Advantages of LovoL Marine Engine
1. With seawater-freshwater dual cooling close circle system, our generating marine diesel engines can alarm and automatically stop when water temperature, oil pressure and rotating speed exceed their limits.
2. The double layer protective structure of the high-pressure fuel pipes ensures its safety and reliability.
3. Gear-driven seawater pump.
4. The high-temperature protective grid in the exhaust system adopts German heat-insulated material.
5. The electric system is safe and stable due to the double-wired structure.
6. Electronic governing system is available.

Performance Parameters of LovoL Marine Engine

Item 1004GM 1004TGM 1006TGM 1006TWGM
Cylinder number 4 4 6 6
Model Pressurized water、In-line、4 stroke、directory injection、cylinder liner
Bore*stroke(mm*mm) 100*127 100*127 100*127 100*127
Displacement(L) 3.99 3.99 5.99 5.99
Induction system Naturally aspirated Turbocharged Turbocharged Turbocharged water intercooler
Compression ratio 16.5:1 17.5:1 17.5:1 17.5:1
Rated power/speed(kw/rpm) 40/1500 60/1500 90/1500 110/1500
Max. power(kw) 44 66 99 121
Min. fule consumption(g/kwh) 215 215 215 210
Temperature exhausting(℃) 600 550 550 550
Engine oil pressure(Mpa) 0.34~0.45 0.34~0.45 0.34~0.45 0.34~0.45
Average sound dB(A) 92 92 94 94
Start type Electric started Electric started Electric started Electric started
Overall dimensions(mm)A*B*C 1150*810*980 1150*810*980 1430*900*1000 1430*940*1000
