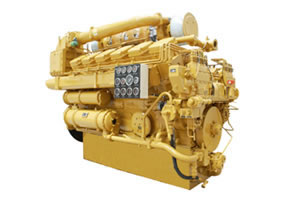

Marine Engine SDEC Marine Propulsion Engine
Description of SDEC Marine Propulsion Engine
1. Chinese high speed propulsion engines used for marine power;
2. Power output range: 20~1224HP, rated speed of engine: 1200~2000rpm.
3. The marine engines offer high performance, strong power, simple structure, easy operation & maintenance.
4. It can be widely used as propulsion power for fishing and ship transport, cargo, ferry, work boat, etc. both inland and sea.
Standard Collection of Marine Propulsion Engine
1. Bare Engine with fresh～raw water heat exchanger, expansion tank, water cooled manifold, fresh, raw water pump, panel installed on engine, air cleaner, flywheel and flywheel housing.
2. Engine with gearbox sets: engine & gearbox connected and fixed on common base.
Optional Parts:
Silencer
Accordion pipe
Available Certification:
1. CCS(CHINA CLASSIFICATION SOCIETY)
2. EIAPP (ENGINE INTERNATIONAL AIR POLLUTION PREVENTION)~ Engine above 130kW
Main Specifications of SDEC Marine Propulsion Engine
| 80 – 319HP, 1500-2200RPM, Marine Diesel Engine | |||
| Engine Model | Prime Power | RPM | |
| kW | HP | ||
| 4135ca | 58.8 | 80.0 | 1500 |
| 4135Aca | 73.5 | 100.0 | 1500 |
| 6135Ca-2 | 88.3 | 120.0 | 1500 |
| 6135ACa-1 | 110.3 | 150.0 | 1500 |
| 6135JZCa | 140 | 190.0 | 1500 |
| 6135AZCa-2 | 162 | 220.0 | 1500 |
| 6135JZLCa-1 | 176 | 240.0 | 1500 |
| G128Ca | 147.1 | 200.0 | 1800 |
| G128ZCa | 178.2 | 242.0 | 1500 |
| G128ZCa1 | 178.2 | 242.0 | 1800 |
| G128ZCa2 | 178.2 | 242.0 | 1500 |
| G128ZCa3 | 206 | 280.0 | 1800 |
| G128ZLCa | 206 | 280.0 | 1500 |
| G128ZLCa1 | 220.5 | 300.0 | 1500 |
| G128ZLCa2 | 258 | 350.0 | 1500 |
| 12V135ACa1 | 220.6 | 300.0 | 1500 |
| 12V135JZCa | 280 | 380.0 | 1500 |
| 12V135AZLCa | 280 | 380.0 | 1200 |
| 4135ACa3-1 | 61.8 | 83.0 | 1500 |
| 4135ACa3 | 73.5 | 100.0 | 1500 |
| 6135ACa3-2 | 91 | 123.0 | 1500 |
| 6135ACa3-1 | 112.5 | 153.0 | 1500 |
| 6135ACa3 | 116 | 160.0 | 1500 |
| 6135AZCa3-1 | 144.2 | 196.0 | 1500 |
| 6135AZCa3 | 162 | 220.0 | 1500 |
| 6135AZLCa3 | 178.3 | 243.0 | 1500 |
| D683ZCA2B | 110 | 149.6 | 1500 |
| D683ZCA1B | 137.5 | 187.0 | 1800 |
| D683ZLCA6B | 150 | 204.0 | 1500 |
| D683ZLCA4B | 170 | 231.2 | 1800 |
| D683ZLCA1B | 184 | 250.2 | 2200 |
| D683ZLCAB | 205 | 278.8 | 2200 |
| D683ZLCA3B | 225 | 306.0 | 2300 |
| D683ZLCA8B | 234.5 | 318.9 | 2330 |
